Long Range Wireless Lambing Camera System 4 1080p HD IP Cameras & NVR
- HD Wireless Lambing Camera System
- This system lets you monitor your animals from a central building around the clock, helping save you stress
- 4 IP Cameras
- Uses digital IP cameras, providing much-improved image quality over traditional systems, along with more versatile viewing options
- Mobile Access
- The kit connects directly to your internet router, allowing you to easily check in on your animals using a PC, smartphone, or tablet
- 1080p HD
- Our first HD foaling & lambing camera kit, allowing you to watch your animals in far more detail than before
- 30m Night Vision
- Essential for use in unlit barns or sheds
- IP67 Cameras
- Weatherproof housings allow the camera to be used in exposed outdoor locations
- 4 Channel NVR
- Includes recorder with your choice of hard drive, letting you record days worth of HD footage as well as watch live
- Advanced Recording Modes
- The recorder features motion detection and scheduled recording, all with in-depth adjustments
- HDMI output
- NVR features HDMI, allowing you to easily view on a TV in the same building as your cameras
- 10m Cables
- Allow flexibility in choosing a location for recorder and transmitters
What's in the box?
- 4x 1080p HD IP security cameras
- 6x 10-metre outdoor black network cables
- 1x 4-port PoE-enabled Network Switch
- 2x 5GHz Wireless Bridge Panels
- 1x 3-metre patch network cable for panels
- 1x Mains power supplies for panels
- 2x J-pole mount brackets for panels
- 1x 4 Channel Network-Connected NVR
- 1x Mains power supply for NVR
- USB mouse for NVR
- Manuals & Schematics
- FREE 1 Year Premium Support - This pack includes 1 Year FREE of our Premium support package for priority telephone support. Please call and book this in for the next available time slot
As opposed to traditional analogue CCTV cameras, this system uses advanced IP security cameras. These record high-quality digital video and then send it as data down a network cable. As a result, the kit records in 1920x1080p HD, capturing images of your animals with more detail and definition.
This also means that, instead of using standard wireless transmitters, the system can use a pair of WiFi transmitters to send your video across huge ranges- up to 3km providing there is a direct line of sight between the devices. This lets you keep a constant watch over animals all the way on the other side of your property!
As well as 4 weatherproof cameras with 30m night vision, the system also includes a 4-channel network video recorder (NVR). The cameras are wired into this central recorder in your barn or lambing shed, and then this is connected to the transmitter in order to send video from all 4 cameras. The NVR boasts a full set of adjustable features, including motion detection and scheduled recording, allowing you to keep an archive of footage on your chosen hard drive. The signal from the transmitter can then connect directly to your internet router, allowing you to view your animals on a PC, smartphone or tablet from anywhere with an internet connection!
This pack includes 1 Year FREE of our Premium support package for priority telephone support. Please call and book this in for the next available time slot.
Cameras
Resolution: 2MP 1920(H)x1080(V)
Image Sensor: 1/2.7 Progressive CMOS
Min. Illumination: colour 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
Shutter: 1/5 ~ 1/20000s
Slow Shutter: Support
Lens: 3.6 mm H.FOV: 87°
Day & Night: IR cut filter with auto switch（Day/Night/Auto/Schedule
Digital Noise Reduction: 3D DNR
WDR: Digital WDR
Video Compression: H.265/H.264
Video Bitrate: 256Kbps ~ 8Mbps
Stream: Dual
Frame Rate: Mainstream (1 ~ 25 fps)
1080P(1920x1080) 960P(1280x960)
720P(1280x720) - Substream: VGA(640x480)QVGA(320x240)
Image Settings: Flip mode Saturation Brightness Contrast Hue Sharpness adjustable
BLC: Support
Privacy Mask: Support
Video Analytics: N/A
Protocols: TCP/IPHTTPDHCPDNSDDNSRTP/RTSPPPPoE
SMTPNTPUPnPSNMPHTTPSFTP
System Compatibility: ONVIF( Ver 2.6 Profile S Profile G)
Interface: RJ45 10M / 100M Ethernet interface x1
Led : 18pcs(SMD)
IR Range: Up to 30m
SD Storage: no
Alarm Trigger: no
Built-in Mic: no
Audio:no
Video Output: no
Reset Button: no
PoE: yes
Weatherproof: IP66
Power Supply: DC 12V/POE
Consumption: 7W
Dimension: 69 x 138mm
Weight: appr. 320g
Storage Temperature: -30–+60°C
Operating Temperature: -30–+55°C
WiFi Transmitters
Interface: 2x RJ45 Connectors 1x Reset Button
Power Requirements: Active Internet Proprietary PoE Power Adapter
Frequency Band: 802.11 a/n
Data Rate: 300Mbps
Antenna: 10dBi
Operation Mode: Access Point Client Bridge Client Router WDS
Operational Temperature: -20°c to +70°c
Humidity: 0-90%
Dimensions: 186x100x29mm
Weight: 300g

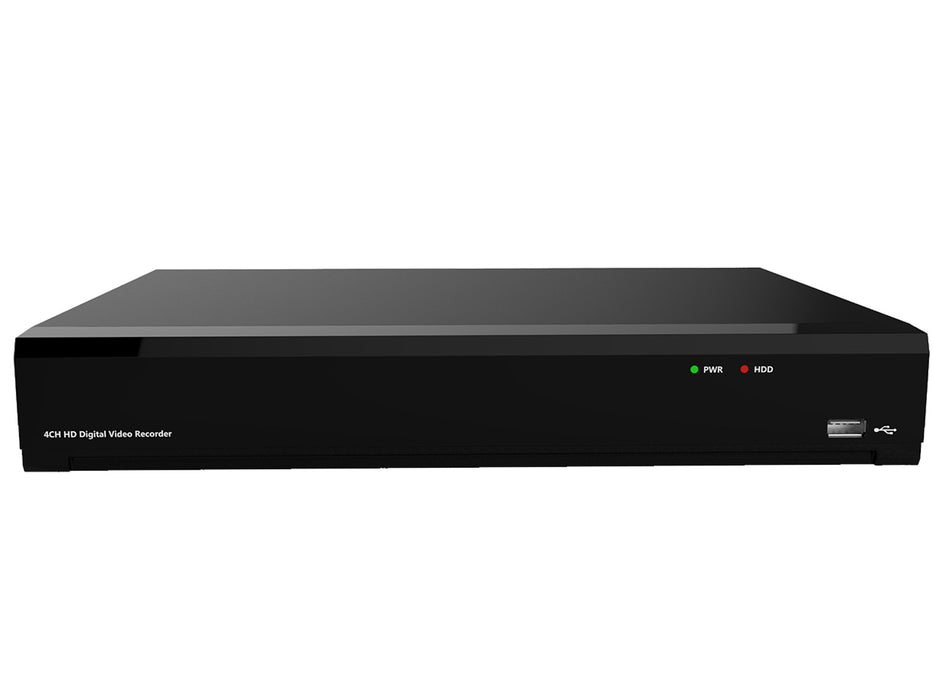

Recorder
Inputs
Video Resolution: 8MP, 5MP, 3MP, 2MP (1080p),1.3MP (960p), 1.0MP (720p)
Recording Bandwidth: Input: 50Mbps; Output: 64Mbps
Live/Playback
Audio compression: G.711a
Video compression: H.264/H.265
Frame rate: 4K: 45fps; 4MP: 90fps; 2MP: 180fps
AI: Yes
Event motion detection: Sensitivity Level 1–8
Alarm notification: Video loss, beep, email, push notification to app
Playback function: Fast forward/backward (2×, 4×, 8×,16×); Slow forward (1/2×, 1/4×, 1/8×, 1/16×)
Playback: Max 4ch playback
UI/Monitoring: Local UI5.0; web browser
Mobile app: RXCamView (iOS & Android)
Interface
VGA: 1× (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080）
HDMI: 1× (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560×1440, 3840×2160）
Connections: 4× PoE RJ45
Ethernet: 1× RJ45 10/100 Base-T
USB: 1× USB 2.0 (front); 1× USB 2.0 (rear)
Audio out: 1
eSATA: No
HDD: 1× HDD: up to 6TB; 2× HDD: up to 10TB
Line in: 1 optional
RS485: 1 optional
Alarm Input/out: No
Password Reset: Press 3 seconds
Factory Reset: Press 10 seconds
General
Dimensions (W×D×H): 300×227×53mm
Power: 1× HDD: DC 48V 1.2A; 2× HDD: DC 48V 2A
PoE Switch: 48V
Operating Temperature: 0°C–40°C
Operating Humidity: Less than 90%RH
