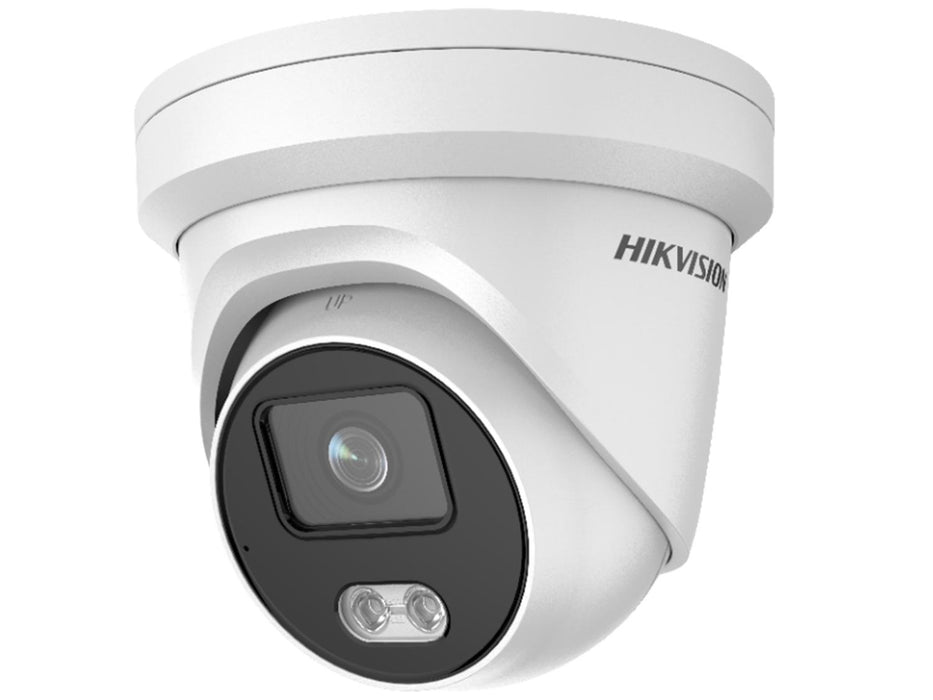

Hikvision 4MP ColorVu Turret IP Camera
- ColorVu Technology
- Provides 24/7 colour images for round-the-clock top-quality footage
- Supplemental Light
- On the front is a lamp that provides an additional 30-metre range of visible light.
- 4MP Video
- Captures high-quality video at 2688x1520 resolution.
- Onboard storage
- Features a microSD card slot that supports cards up to 128GB in capacity.
- H.265+ Compression
- Efficient compression allows more footage to be recorded on less storage.
- Smart Analysis
- Advanced processing allows the use of automation features including facial detection, line crossing and intrusion detection, helping you protect your property against intruders and other kinds of trouble. These can be set using the Hikvision app, or with a Hikvision NVR.
- IP66 Rated
- IP66 rated housing protects the camera from the elements, letting it be used indoors or outdoors.
- Power-over-Ethernet
- Camera draws power from the network cable, so there's no need to mess about with wiring a separate power supply. Requires compatible switch or NVR
- WDR
- Clear imaging is achieved even in strong backlighting thanks to 130dB Wide Dynamic Range.
- DNR
- 3D DNR technology delivers clean and sharp images.
What's in the box?
- 1x Hikvision 4MP ColorVu IP turret camera
Up until now even with the best DarkFighter cameras they still require infra-red night vision at night that produces black-and-white images. But what if you need colour images 24 hours a day? ColorVu cameras are the solution!
These Full-Time Colour cameras are ideal for residential, small business applications and also for environments such as car parks and public spaces.
What's different about ColorVu?
Larger Apertures
Large f/1.0 apertures allow the cameras to capture more light than conventional cameras.
Bigger Sensor
These cameras are fitted with the latest and greatest imaging chips that produce stunning images. Fitted with clever technologies such as Backside Illumination (BSI), Dual Conversion Gain (DCG) and Wide Dynamic Range (WDR) that help product bright and colourful images in all conditions.
Brighter Image
Built-in soft and warm optional supplemental lighting works to guarantee colourful images, even in complete darkness.
Camera
Image Sensor: 1/1.8 Progressive Scan CMOS
Min. Illumination: 0.0014 @ F1.0 AGC ON 0 Lux with Light
Shutter Speed: 1/3s to 1/100000s
Slow Shutter: Yes
Wide Dynamic Range: 120 dB
Angle Adjustment: Pan: 0° to 360° tilt: 0° to 75° rotate: 0° to 360°
DNR: 3D DNR
Lens
Lens: 2.8mm
Aperture: F1.0
Focus: Fixed
FOV: horizontal FOV: 109° vertical FOV: 55° diagonal FOV: 138°
Lens Mount: M16
Illuminator
White Light Range: Warm white LEDs (3000K) up to 30m
Video
Max. Resolution: 2688 x 1520
Main Stream: 25fps (2688x1520 2560x1440 2304x1296 1920x1080 1280x720)
Sub Stream: 25fps (640x480 640x360 320x240)
Third Stream: 25fps (1280x720 640x360 352x288)
Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
H.264 Type: Main Profile/High Profile
H.265 Type: Main Profile
Video Bit Rate: 32 Kbps to 16 Mbps
Audio
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Environment Noise Filtering: Yes
Sampling Rate: 8kHz/16kHz/32kHz/44.1kHz/48kHz
Smart Feature-Set
Behaviour Analysis: Line crossing detection intrusion detection object removal detection unattended baggage detection
Region Of Interest: 1 fixed region for main stream and sub-stream separately
Exception Detection: Scene change detection
Image Enhancement: BLC/3D DNR/HLC
Image Setting: Rotate mode saturation brightness contrast sharpness AGC white balance adjustable by client software or web browser
Day/Night Switch: Day/Night
Network
Network Storage: microSD/SDHC/SDXC card (128 GB) local storage and NAS (NFS SMB/CIFS) ANR
Protocols: TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP RTCP PPPoE NTP UPnP„¢ SMTP SNMP IGMP 802.1X QoS IPv6 UDP Bonjour
API: ONVIF (PROFILE S PROFILE G) ISAPI
Simultaneous Live View: Up to 6 channels
User/Host: Up to 32 users 3 levels: Administrator Operator and User
Client: iVMS-4200 Hik-Connect iVMS-4500 iVMS-5200
Web Browser: Plug-in required live view: IE8+ Chrome 41.0-44 Firefox 30.0-51 Safari 8.0-11; Plug-in free live view: Chrome 45.0+ Firefox 52.0+
Alarm Trigger: Motion detection video tampering detection network disconnected IP address conflict illegal login HDD full HDD error
Interface
Communication Interface: 1x RJ45 10M/100M self-adaptive Ethernet port
Audio: 1 audio input (built-in mic ) mono sound
On-Board Storage: Built-in Micro SD/SDHC/SDXC slot up to 128 GB
General
Firmware Version: V5.5.82
General Function: One-key reset anti-flicker three streams heartbeat mirror password protection privacy mask watermark IP address filter
Reset: Yes
Operating temperature: -30 °C to +60 °C
Operating humidity: 95% or less (non-condensing)
Power Supply: 12V DC ± 25% 5.5 mm coaxial power plug PoE (802.3af class 3)
Power Consumption And Current: 12V DC 0.5 A max. 6 W PoE (802.3af 36 V to 57 V) 0.2 A to 0.1 A max. 7.5 W
Material: Camera: Metal; trim ring: Plastic
Dimensions: Camera: 138.3 (dimensions) x 125.2 mm; With package: 170 x 170 x 150 mm
Weight: Camera: 575 g; With package: 833 g
Interface Protection: IP66
Smart Feature-Set
Face Detection: Yes
