Hikvision Turbo HD 8MP CCTV System with 4 Bullet Cameras
- Hikvision Turbo HD CCTV
- Professional grade CCTV system, with cameras and DVR from the world's largest manufacturer of video security equipment
- 8 Megapixel Video
- Records footage in 3840x2160 resolution, providing four times the detail of 1080p. Perfect for applications in busy areas such as shopping centres and bars
- Plug and Play
- Instead of using complex IP cameras, this kit uses standard plug-and-play coaxial cables, so there's no need for a network configuration to get them running
- 60m Night Vision
- Powerful IR LEDs illuminate subjects up to 60 metres away, allowing 24/7 use in larger unlit spaces
- Wide Angle Lens
- 3.6mm lens captures all subjects within a huge 102-degree field of view
- Low Lux Recording
- Imaging chip is sensitive down to 0.003lux, allowing the system to record in colour for longer before switching to night vision
- Hikvision DVR
- Kit also includes pro-grade recorder, pre-fitted with your choice of hard drive storage
- 8MP Recording
- Captures video from the cameras at full resolution, so you won't lose a pixel of detail
- H.265+ Compression
- Video is recorded using Hikvision's own advanced compression, allowing you to record for longer without needing extra storage
- Smart Detection
- As well as motion detection, the DVR also allows the use of video analytics including line crossing
- Alarm In/Out
- Easily integrates into an existing alarm system
- Remote Access
- Connect DVR to your network to remotely view cameras and adjust settings over PC or mobile. If you're not confident with networking, then we can even configure this remotely for you, just add the service from the dropdown menu!
Customise your system to fit your exact needs by adding the best length of the cable and hard drive size from the drop-down at the top of the page
What's in the box?

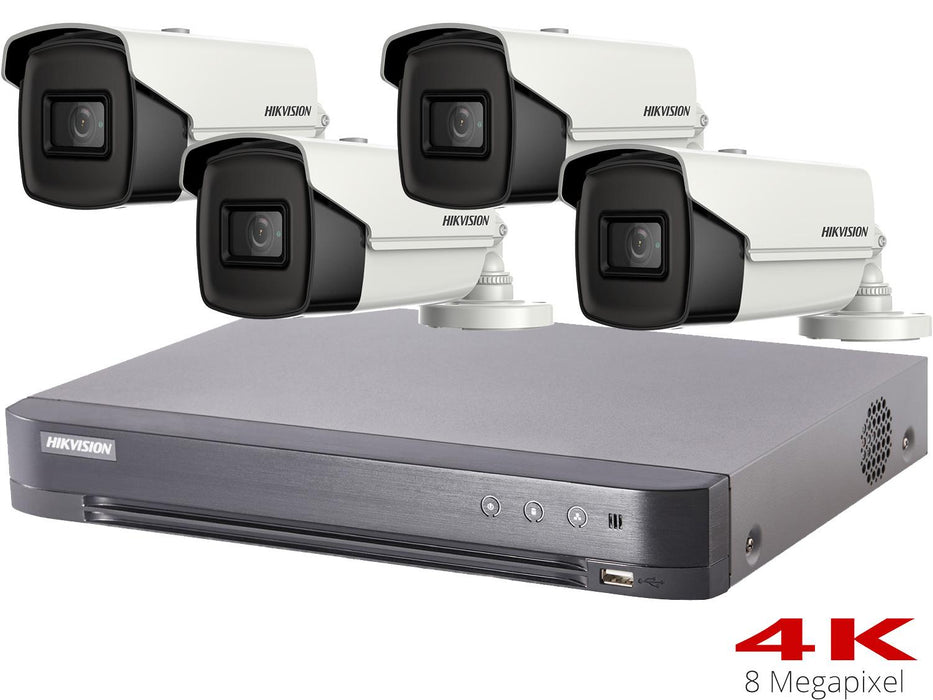

- 4x Hikvision Turbo HD bullet cameras
- 4x Mains power supplies for cameras
- 1x Hikvision Turbo HD DVR
- 1x USB mouse
- 1x Mains power supply for recorder
8 Megapixel – or 4K – is the flagship resolution for CCTV, recording hugely detailed images with over 4 times the subject detail of 1080p. This allows you to gain exceptional, quality even from small crops of the picture, ideal for recording in areas like busy bars, clubs and car parks. Up until recently, however, 8MP meant IP cameras and a complex configuration over a network. Hikvision's Turbo HD range changes this, providing incredible detail whilst still using traditional, plug and play coaxial cables.
This security system uses two Turbo HD bullet cameras, along with a professional-grade recorder to control them. Despite their compact size, the cameras are rated IP67 weatherproof and boast 60 metres of night vision. This makes them suitable for both indoor and larger outdoor spaces.
The DVR is also part of the Turbo HD range, ensuring it can record footage from the cameras without any loss of picture quality. It includes a wide range of recording features such as motion detection and 24/7 scheduling, as well as your choice of hard drive to store the files. By connecting the DVR to your network router, you can even set up remote access, letting you view cameras and control settings from anywhere using a mobile or PC.

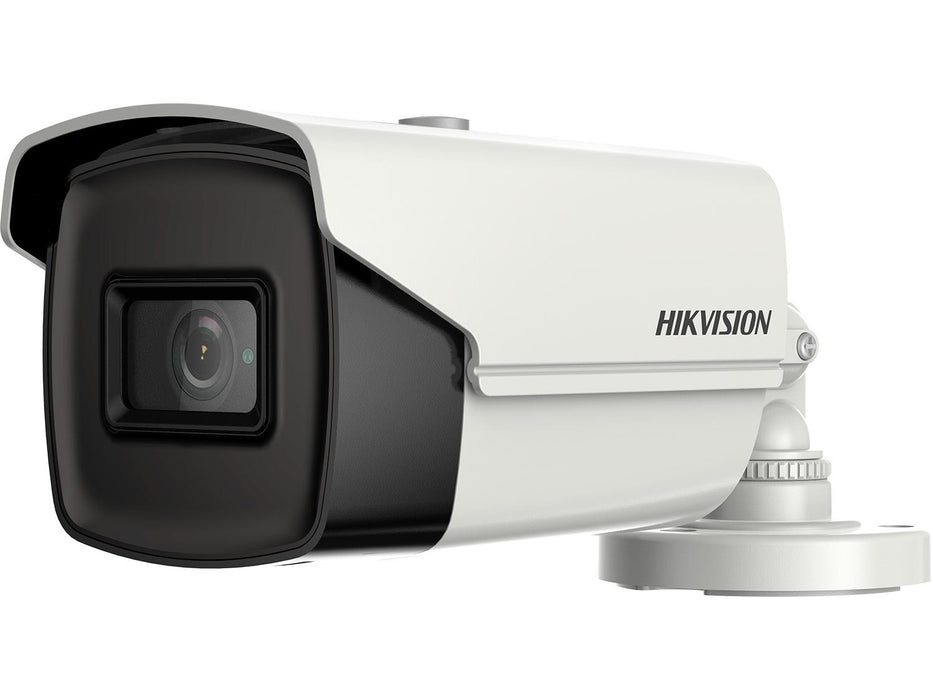

Camera
Imaging Sensor: 8.29MP progressive scan CMOS
Signal System: PAL/NTSC
Frame Rate (PAL): 8MP @12.5fps 5MP @20fps 4MP/1080p @25fps
Resolution: 3840x2160
Minimum Illumination: 0.003 Lux (colour IR off) 0 Lux (IR on)
Shutter Time (PAL): 1/12.5-10000s
Lens: 2.8mm
Horizontal Field of View: 102.2 Degrees
Lens Mount: M12
Day & Night: IR Cut
Synchronization: Internal Synch
Wide Dynamic Range: 105dB
AGC: Supported
Day/Night: Auto colour B&W
White Balance: Auto manual natural
Privacy Mask: Supports 4 programmable masks
Back Light Compensation: Supported
3D DNR: Supported 10 levels
Language: English
Image Functions: Contrast sharpness saturation mirror defog HLC
HD Output: 1x BNC
CVBS Output: 1x BNC
Operational Temperature: -40 to +60c
Operational Humidity: <90%
Power Supply: 12V DC
Power Consumption: Max 4.8W
Protection Level: IP67
Housing Material: Metal
IR Range: 60m
Communication: Up the coax (HIKVISION-C)
Dimensions: 70(d)x159.8mm
Weight: 420g

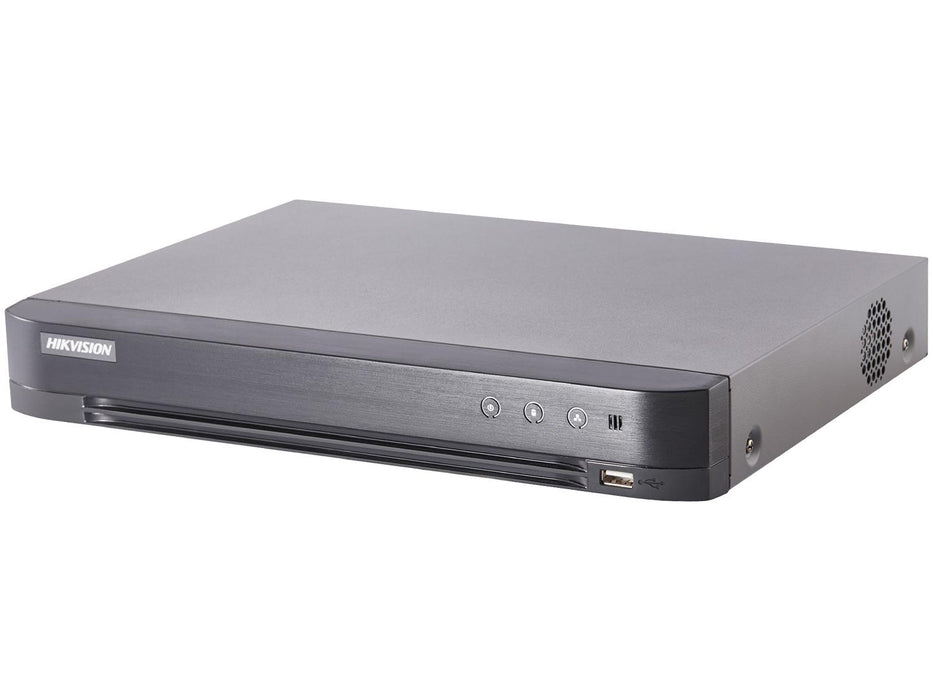

Recorder
Coaxial Inputs: 4x BNC
Video Compression: H.265+ H.265 H.264+ H.264
HD-TVI Input: 8MP 5MP 4MP 3MP 1080p30 1080p25 720p60 720p50 720p30 720p25
AHD Input: 5MP 4MP 3MP 1080p30 1080p25 720p30 720p25
HD-CVI Input: 4MP 1080p30 1080p25 720p30 720p25
CVBS Input: PAL NTSC
IP Video Input: 2x (over network)
IP Video Resolution: Up to 8MP
Audio Compression: G.711u
Audio Input: 4x RCA
CVBS Output: 1x BNC (704x576)
HD Output: 1x HDMI 1x VGA
HDMI Output: 3840x2160@30 2560x1440@60 1080@60 1280x1024@60 1024x768@60
VGA Output: 1920x1080@60 1280x1024@60 1280x720@60 1024x768@60
Encoding Resolution: 8MP 5MP 4MP 3MP 1080p 720p WD1 4CIF VGA CIF
Main Stream Frame Rate: 8MP@12fps 5MP@20fps 3MP@18fps 4MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps
Sub Stream Frame Rate: WD1/4CIF/CIF@25fps
Video Bitrate: 32Kbps to 16Mbps
Audio Output: 1x RCA
Audio Bitrate: 64Kbps
Dual Stream: Supported
Stream Type: Video Video & Audio
Synchronous Playback: 4x
Remote Connections: 32
Network Protocols: TCP/IP PPPoE Hik-Connect DNS DDNS NTP SADP NFS iSCSI UPnP HTTPS ONVIF
Storage: 1x SATA (Up to 8TB)
Network Interface: 1x 10/100/1000M Self adaptive Ethernet
USB Interface: 1x USB 2.0 (front) 1x USB 3.0 (back)
Serial Interface: RS-485
Alarm In/Out: 4/1
Power Supply: 12V DC
Consumption: <15W (No HDD)
Operational Temperature: -10 to +55C
Operational Humidity: 10-90%
Dimensions: 315x242x45mm
Weight: <1.5Kg (no HDD)
