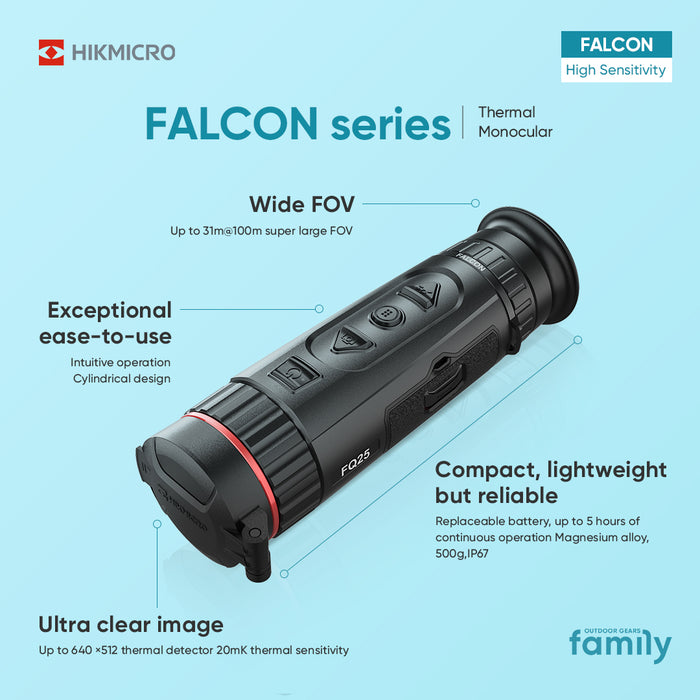

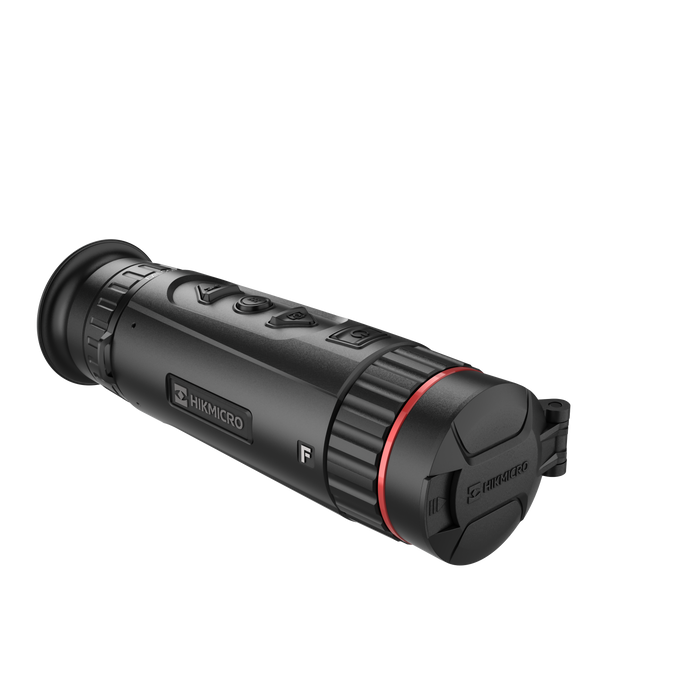

Hikmicro Falcon 25mm Smart Thermal Surveillance Monocular
- Compact size, easy to carry - A lightweight design weighing only 0.31kg/0.68lb.
- Advanced 384x288 12um 12µm imaging sensor.
- Long detection range - with the advanced imaging sensor and lens, the detection range of a 1.7m target can reach up to 1181m.
- Video and snapshot- Onboard 64GB memory offers storage space for snapshots and video clips. Recorded files can be downloaded when connected to a PC via a USB port.
- Wi-Fi hotspot for mobile app- An integrated Wi-Fi module means the T-vision app can act as a second display. Users can use digital zoom, video recording and other features on their phones.
- Smart range measurement - Measuring distance quickly with high accuracy based on the top and the bottom of the target
- Large digital zoom - Digital zoom up to 8x offers a better focus on small targets from a far distance.
- 4 colour palettes - The LYNX Pro series provides four colour palettes for different scenarios.
The HIK Micro Falcon 25mm Smart Thermal Monocular represents a significant milestone in HIK Micro's range, offering an optimal blend of long-range detection and detailed identification, making it an ideal choice for surveillance tasks that require precision and accuracy.
This model leverages HIK Micro's 384x288 12um sensor in tandem with a 25mm lens system, a combination that yields a detailed image ideal for monitoring human-sized targets. The 2.1x optical magnification extends the detection distance, making the Falcon 25mm a powerful and versatile unit adaptable to various surveillance situations. Its sub-35 NETD performance of the sensor guarantees detection of minor temperature changes and exceptional performance in challenging conditions, a crucial aspect for surveillance operations in diverse environmental settings.
The Falcon 25mm carries forward the tried and tested software capabilities of the HIK monoculars range. This includes four color palettes - white-hot, black-hot, red-hot, and fusion - to cater to varying surveillance needs. Each palette offers unique benefits for different viewing conditions and environments, contributing to the monocular's adaptability.
In addition, the Falcon 25mm has the capacity to record video or images with its onboard memory. This ensures that crucial moments in your surveillance operations are captured and can be reviewed for intelligence or evidence collection. The compatibility with the T-Vision app allows you to share or record your experiences seamlessly, a significant advantage in situations where real-time information sharing can be critical.
In conclusion, the HIK Micro Falcon 25mm Smart Thermal Monocular offers a sophisticated solution for professionals in the surveillance field, bringing together long-range detection, detailed identification, and versatile software features to aid in effective surveillance of human targets across a range of distances and conditions.
- MAIN
- Sensor
- 384×288px @ 12µm
- Objective Lens (Focal Length)
- 25 mm
- Detection Distance
- 1200 m
- SENSOR
- Type
- VOx Uncooled Focal Plane Arrays
- Resolution, pixels
- 384 × 288 px
- Pixel pitch, µm
- 12µm
- Frame rate, Hz
- 50 Hz
- NETD
- <20mK
- THERMAL OPTICS
- Objective lens
- F1.0
- Magnification (Optical)
- 2.1x
- Magnification (Digital)
- 1x, 2x, 4x, 8x
- Field of view
- 10.5° × 7.9° (H × V)
- DISPLAY
- Type
- 10 mm, OLED
- Resolution, Pixels
- 1024 x 768
- Colour Palettes
- Black Hot, White Hot, Red Hot, Fusion
- VIDEO RECORDER
- Build in memory, Gb
- 64 Gb
- Image Capture
- Yes
- Video Record
- Yes
- ADDITIONAL FEATURES
- Image Pro Mode
- YES
- Hot Tracking
- YES
- WiFI hot spot
- YES
- HIKMICRO Connect App support
- YES
- ENVIRONMENTAL
- Degree of protection, IP code
- IP67
- Dust protection
- Protected against dust ingress
- Water protection
- Protected against temporary submersion in water
- Operating temperature range
- -30 °C to 55 °C
- WEIGHT & SIZE
- Dimensions, mm
- 188 mm x 58 mm x 65 mm
- Weight, kg
- 0.5 kg
- POWER SUPPLY
- Battery type
- 18650 Removable battery
- Operating time on battery (WiFi & Hot tracking disabled)
- 7 hours continuous running
- Charging interface
- External charger (Supplied)
- Size
- Compact size, easy to carry - A lightweight design weighing only 0.31kg/0.68lb.
- Sensor
- Advanced 384 x 288px 12µm imaging sensor.
- Sensor
- Long detection range- with the advanced imaging sensor and lens, the detection range of a 1.7m target can reach up to 1181m.
- Memory
- Video and snapshot- Onboard 8GB memory offers storage space for snapshots and video clips. Recorded files can be downloaded when connected to a PC via a USB port.
- App
- Wi-Fi hotspot for mobile app- An integrated Wi-Fi module means the T-vision app can act as a second display. Users can use digital zoom, video recording and other features on their phones.
- Range
- Smart range measurement- Measuring distance quickly with high accuracy based on the top and the bottom of the target
- Zoom
- Large digital zoom- Digital zoom up to 8x offers a better focus on small targets from a far distance.
- Colour Palettes
- 4 colour palettes- The LYNX Pro series provides four colour palettes for different scenarios.
- HIKMICRO Falcon FH25 25mm Thermal Monocular.
- USB-C Data Cable
- Micro USB Cable
- Dual 18650 Battery Charger
- Neck Strap
- Neoprene carry bag
