Bird Box Camera Deluxe Bundle Wireless Transmission
- Complete Bird Box Camera Kit
- Includes everything you need to set up a bird house with a wireless camera in your garden, letting you watch birds hatch and grow on a TV or monitor
- Green Feathers
- Includes our best selling Green Feathers wireless camera kit, letting you transmit video from the box to a receiver in your home
- Tiny Camera
- Fits into the bird box via the dedicated mounting point
- Night Vision
- Uses invisible infrared LEDs to record inside the dark nest without any glow that could disturb the chicks
- Wide Angle Lens
- Captures all of the inside of the box, including the entrance hole
- User Switchable Wireless Channels
- Provides an easy way to adjust the frequency should you encounter wireless interference
- Wireless Transmission
- Sends video to the receiver up to 50m away, so the only thing you need to plug it in to is power. Please note - obstructions such as walls and glass will reduce this range

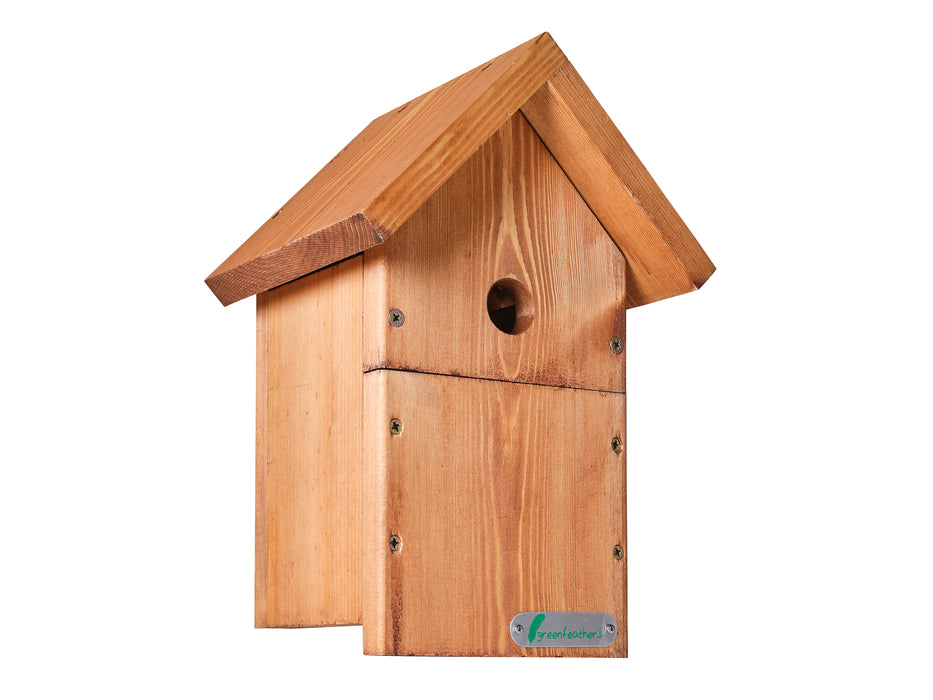

- Wooden Bird Box
- Includes bird house hand made in the UK by our partners at Riverside Woodcraft
- FSC Mix Wood
- Bird box produced only from sustainable sources of timber
- Custom Designed for Cameras
- The box has been made to our exacting specifications, including slots to run the cable, and a pre-drilled mounting point
- 10 Metre Power Cable
- Helps run power out to the camera in the box from the included mains power supply
- RCA to HDMI Adapter
- Also Includes an adapter to let you easily view footage on an HD TV or monitor
What's in the box?
- 1x Wooden bird house
- 1x Green Feathers wireless bird box camera
- 1x Wireless receiver
- 2x Mains Power Supplies
- 1x 10m power extension cable for camera
- 1x RCA to HDMI adapter
Setting up a bird box camera is a fantastic way for any nature lover to get closer to the wildlife right in their garden. Thanks to our partners at Riverside Woodcraft, we are now able to offer our popular wireless bird box camera as part of a complete kit, including a wooden bird box, and everything you need to get it up and running. This makes it a great project for families, or a learning aid for schools.
The kit is built around our most popular wireless camera. This tiny device can be installed inside the bird box and captures clear video of everything inside thanks to its night vision LEDs and a wide-angle lens. It can then transmit video over wireless to the receiver. This means that all you need to connect it to is a power supply, using the included 10m cable. The camera can transmit up to 50m in direct line of sight, however solid obstructions such as walls will reduce this significantly.
The bird box itself is specially designed for use with our cameras, featuring a simple mounting point, and slots to easily run the cable. What's more, the box is hand made in the UK with FSC certified timber. Also included with the pack is an RCA to HDMI adapter, letting you easily connect the receiver's AV cables to any modern HD TV or monitor (HDMI cable not included).
Camera
Imaging Sensor: 1/3 inch OMNIVISION colour CMOS
Horizontal Resolution: 700 TV lines
CMOS Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC)
Scanning Frequency(H): 15.625kHz 15.734kHz
Scanning Frequency(V): 50Hz 60Hz
Angular Field of View: 110 degree (f=2.8mm)
Minimum Illumination: 3.0Lux (F1.2)/ 0Lux (IR LED on)
Infrared LED: 6EA Invisible IR LED 940nm
Consumption Current: 150 mA
Wireless Frequency: ISM 2.414 - 2.468GHz
Wireless Range: 10-20m/50m (obstructed/unobstructed)
Transmission Power: 10mW
Gain Control: Automatic
Modulation Mode: FM
Bandwidth: 18m
Power: DC 8V 500mA
Operating Temperature: -10°C ~ +40°C
Operating Humidity: 85%RH
Dimension (WxLxH): 42x35x35mm
Weight: 65g
Receiver
Frequency: ISM 2414 - 2468MHz 4 Channel
Antenna: Omni-directional antenna
Channel: 1-4 (Flip-type switch)
Intermediate Frequency: 480MHz
Frequency Stabilization: +/- 100kHz
Demodulation Mode: FM
Receiving Sensitivity: 85dBm
Video Output: 1Vp-p@75 ohm S/N>38dB
Power:DC 12V 500mA
Operating Temperature: -10°C to +40°C
Operating Humidity: 85%RH
Dimension (WxLxH): 80x68x16mm
Weight: 120g
HDMI Adapter
Video Input: 1x Composite RCA
Power Input: USB
Output: 1x HDMI
Video Mode: PAL NTSC
HDMI Output: 1080p/60Hz 720p/60Hz
Dimensions: 66x55x20mm
Weight: 40g
