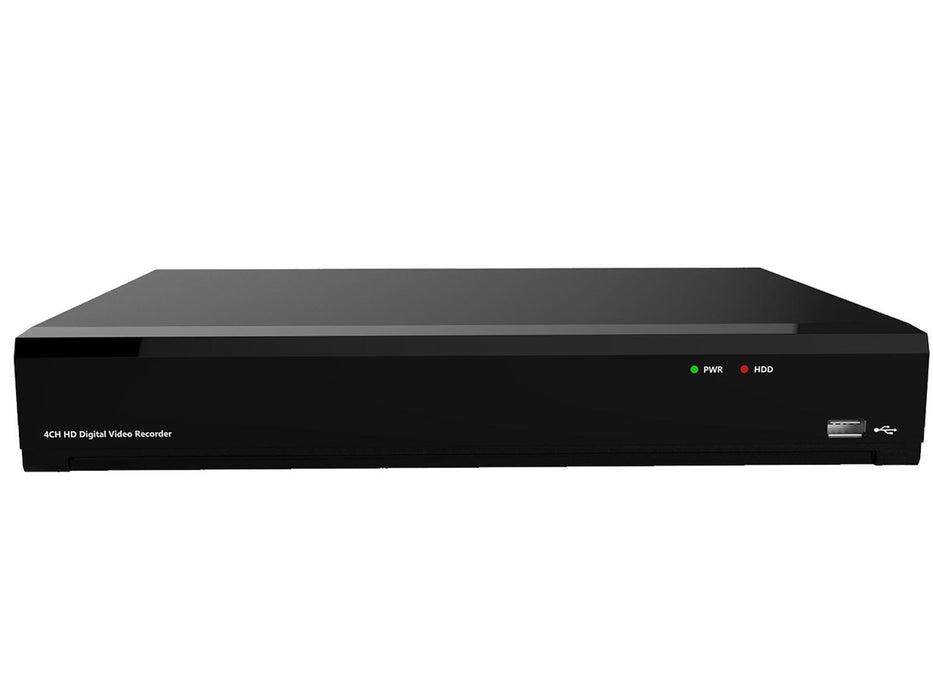

Gamut 4-Channel HD IP CCTV NVR
- 4 Channel CCTV Recorder
- Connect up to 4 IP cameras to the recorder to view and record full-quality footage.
- Up to 4K (8MP) Recording Resolution
- The recorder supports up to 4K (8MP) and HD resolutions to ensure that you capture the most detailed footage.
- Live-View 4K Camera
- You can live-view one 4K (8MP) camera at a time in full resolution to get the sharpest detail
- Add up to 6TB of Storage
- Supports an HDD up to 6TB in capacity for plenty of recording storage. You can add an optional hard drive from the drop-down menu above
- H.265 Compression
- This latest encoding technology allows for more video to be stored in less storage space
- Online Access
- You can connect the recorder to your network for remote viewing on your PC, smartphone or tablet
- HDMI Output
- View the recorder's output on any monitor with HDMI in up to 4K
What's in the box?
- 1x Gamut 4-Channel HD IP CCTV NVR
- 1x UK mains power supply
- 1x USB mouse
- 1x English setup instructions
This professional CCTV NVR is the powerful brain at the centre of your CCTV system. This recorder supports up to 4K (8MP) and HD resolutions to ensure that you view and record the most detailed footage. To get the sharpest detail, you can live-view one 4K (8MP) camera at a time in full resolution.
Need more storage? No problem. This NVR supports an HDD up to 6TB in capacity, so you won't run out of recording storage soon! Just pick an optional hard drive from the drop-down menu, suited to your needs.
And for even more storage space, you can benefit from the latest H.265 compression encoding technology. Thanks to this, you can store more and better quality video in less storage space.
You can view the recorder's output on any monitor with HDMI in up to 4K.
What's more, you can access the recorder online! Simply connect it to your network so you can view your footage from your PC, and your smartphone or tablet using the free app.
Inputs
Video Resolution: 8MP, 5MP, 3MP, 2MP (1080p),1.3MP (960p), 1.0MP (720p)
Recording Bandwidth: Input: 50Mbps; Output: 64Mbps
Live/Playback
Audio compression: G.711a
Video compression: H.264/H.265
Frame rate: 4K: 45fps; 4MP: 90fps; 2MP: 180fps
AI: Yes
Event motion detection: Sensitivity Level 1–8
Alarm notification: Video loss, beep, email, push notification to app
Playback function: Fast forward/backward (2×, 4×, 8×,16×); Slow forward (1/2×, 1/4×, 1/8×, 1/16×)
Playback: Max 4ch playback
UI/Monitoring: Local UI5.0; web browser
Mobile app: RXCamView (iOS & Android)
Interface
VGA: 1× (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080）
HDMI: 1× (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080 , 2560×1440, 3840×2160）
Connections: 4× PoE RJ45
Ethernet: 1× RJ45 10/100 Base-T
USB: 1× USB 2.0 (front); 1× USB 2.0 (rear)
Audio out: 1
eSATA: No
HDD: 1× HDD: up to 6TB; 2× HDD: up to 10TB
Line in: 1 optional
RS485: 1 optional
Alarm Input/out: No
Password Reset: Press 3 seconds
Factory Reset: Press 10 seconds
General
Dimensions (W×D×H): 300×227×53mm
Power: 1× HDD: DC 48V 1.2A; 2× HDD: DC 48V 2A
PoE Switch: 48V
Operating Temperature: 0°C–40°C
Operating Humidity: Less than 90%RH
