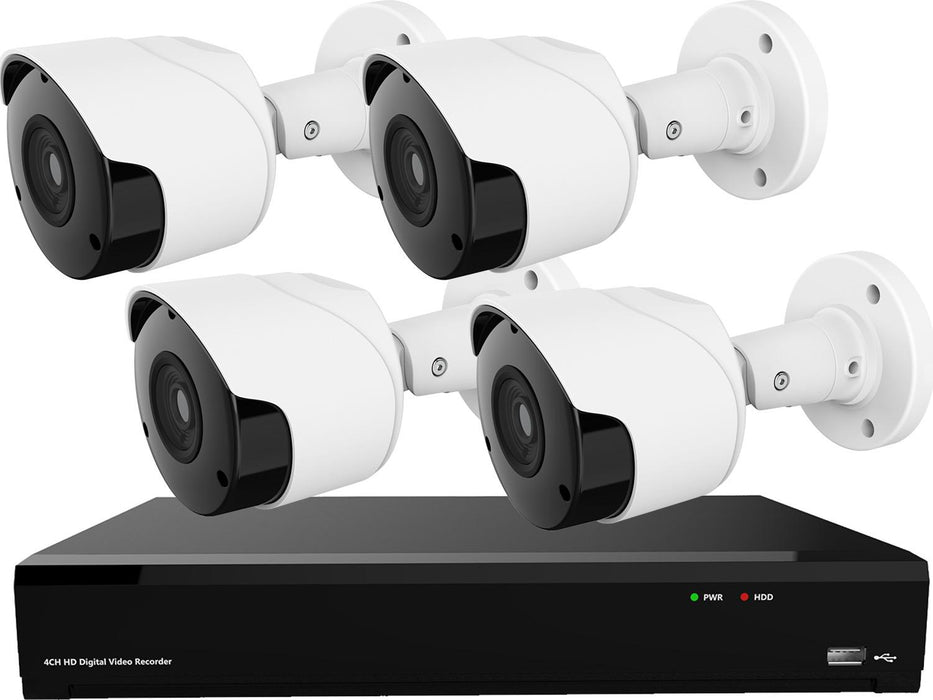

Gamut 2MP HD-TVI 4 Bullet Camera CCTV System

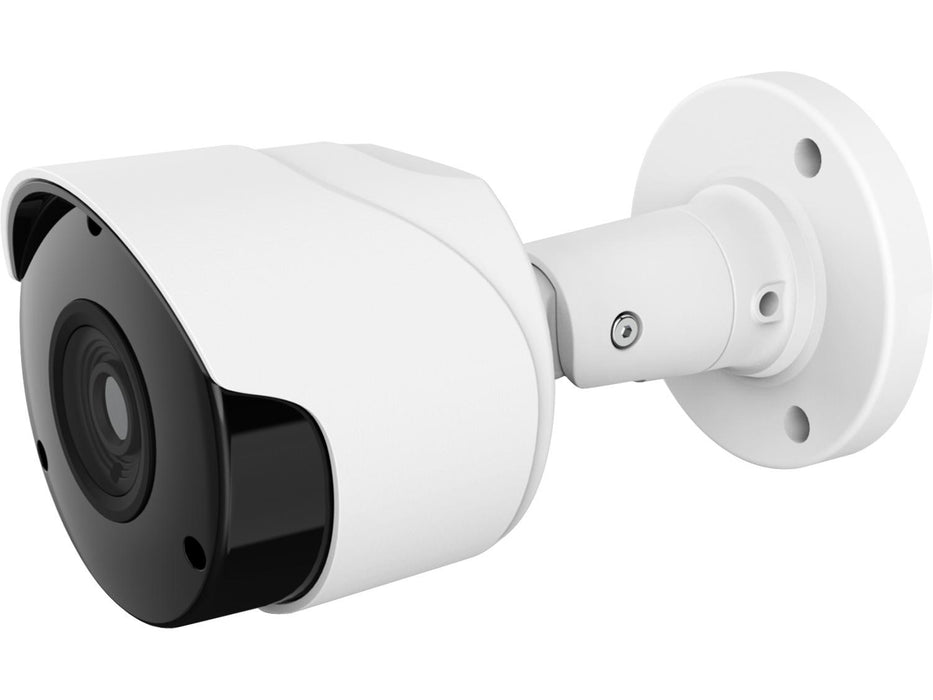

- Gamut 2MP HD-TVI Bullet Cameras
- A part of our Gamut range, these are excellent value cameras that pack top-notch quality tech
- 2MP 1080p HD Video
- These cameras feature professional-grade imaging chips that capture pin-sharp images
- Night Vision: 30m Range
- Infrared LEDs provide up to 30 metres of night vision to ensure round-the-clock viewing
- Weatherproof Casing
- The durable camera casing is rated IP66, which means they can withstand even the worst of British weather
- 4-in-1 Technology
- This is compatible with all major forms of coax CCTV technology. Just use the switch to set it to the right format. Works with TVI, AHD, CVI and CVBS
- Plug-and-Play
- Simply connect up to power and into your recorder with the BNC connection to get the cameras running

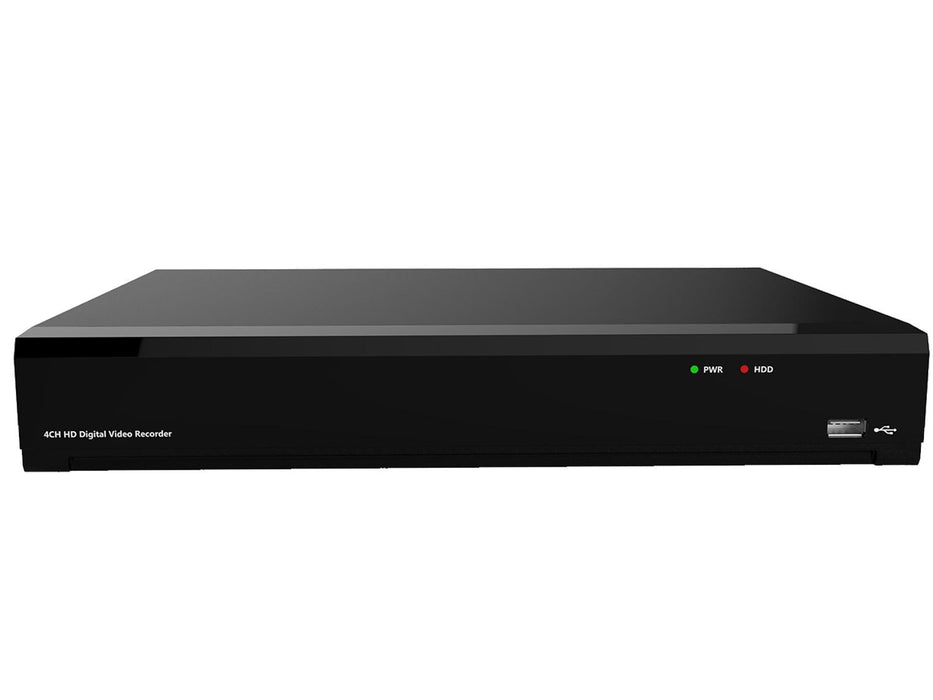

- 4-Channel CCTV Recorder
- Connect up to 4 coax cameras to the recorder to view and record full quality footage
- Connect up to 2 IP Cameras
- You can also add up to two IP cameras to the recorder via your network (further configuration required)
- Add up to 6TB of Storage
- Supports an HDD up to 6TB in capacity for plenty of recording storage. You can add an optional hard drive from the drop-down menu above
- H.265 Compression
- This latest encoding technology allows for more video to be stored in less storage space
- Online Access
- You can connect the recorder to your network for remote viewing on your PC, smartphone or tablet
- HDMI Output
- View the recorder's output on any monitor with HDMI in up to 4K
What's in the box?
- 4x Gamut 2MP HD-TVI Bullet CCTV Cameras
- 4x UK mains power supplies
- 1x Hikvision AcuSense 4 Channel DVR
- 1x USB mouse
- 4x Camera brackets
- Quick start guide
Gamut are manufacturers of professional-grade security and CCTV solutions, all built to withstand the most demanding CCTV trade and commercial applications.
Since being founded in Bristol in 2009, Gamut cameras and recorders are used by a wide base of tradesmen and installers, servicing the home, business and local government markets. To ensure reliable build and picture quality, all products are put through a rigorous testing process both in-house and in the field before they're allowed to bear the Gamut badge.
Part of the range is this kit with four 2MP HD bullet cameras and a 4-channel DVR, along with two UK mains power supplies and a USB mouse.
Each camera features a professional-grade imaging chip that captures pin-sharp images at 1080p. It boasts infrared LEDs to allow for up to 30 metres of night vision, so you can monitor both day and night.
Moreover, thanks to their 4-in-1 flexibility, the cameras are compatible with all major forms of coax CCTV technology. Just use the switch to set it to the right format. Works with TVI, AHD, CVI and CVBS.
Our 4-channel DVR also has this 4-in-1 compatibility so it can link to all major analogue camera video formats. It lets you connect up to four coax cameras to the recorder, and with a bit of extra configuration, you can also add up to two IP cameras via your network.
This recorder supports HD resolutions to ensure that you view and record the most detailed footage.
This highly flexible system is super easy to set up! All you need to do is hook up the cameras to the recording with the BNC connection.
Need more storage? No problem. The DVR supports an HDD up to 6TB in capacity, so you won't run out of recording storage soon! Just pick an optional hard drive from the drop-down menu, suited to your needs.
And for even more storage space, you can benefit from the latest H.265 compression encoding technology. Thanks to this, you can store more and better quality video in less storage space.
You can view the recorder's output on any monitor with HDMI in up to 4K.
What else can we talk about.. oh yes the weather? Our beloved British weather, along with worsening climate changes, can make for challenging conditions when hanging tech outdoors. No worries at planet Gamut! Come rain or shine, these sturdy cameras are housed in durable, weatherproof IP66-rated casing, so they're safe from even the worst of heat or stormy downpours.
And you can stay snug indoors or even be away on holiday, as you can access and control the cameras and recorder online! Simply connect the recorder to your network so you can view your footage from your PC, smartphone or tablet. Easy as pie!
Extra sweet? You'll get this kit delivered for FREE in the UK, so order today!
CAMERA
Image Sensor: SC2235H 1/2.7" Progressive CMOS
Signal System: PAL/NTSC
Video Modes: TVI/CVI/AHD/CVBS
Frame Rate: 25fps (PAL)/30fps (NTSC)
CVBS Resolution: 960H
HD Resolution: 2MP 1920×1080
Min. illumination: 0.05lux @ F1.2 (AGC ON)/0 Lux (IR on)
Shutter Time: 1/15s to 1/50000s
Lens: 2.8mm
Horizontal Field-of-View: 102.94°
Day & Night: IR cut filter 850nm
Synchronisation: Internal
DWDR: support
AGC: Yes
Day/Night Mode: Ext/Auto/colour/BW (Black and White)
White balance: Auto/Manual
BLC: Yes
S/N Ratio: 40dB
OSD: support
Video Output Termination: 1-channel BNC video output
Switch Button: AHD/TVI/CVI/CVBS
IP Rating: IP66
Power Supply: 12V
Power Consumption: Max. 3W
IR Range: up to 20m
Communication: Coax Protocol
Recorder
Video Compression: H.265/H.264
Video System: NTSC/PAL
Operation System: Linux (embedded)

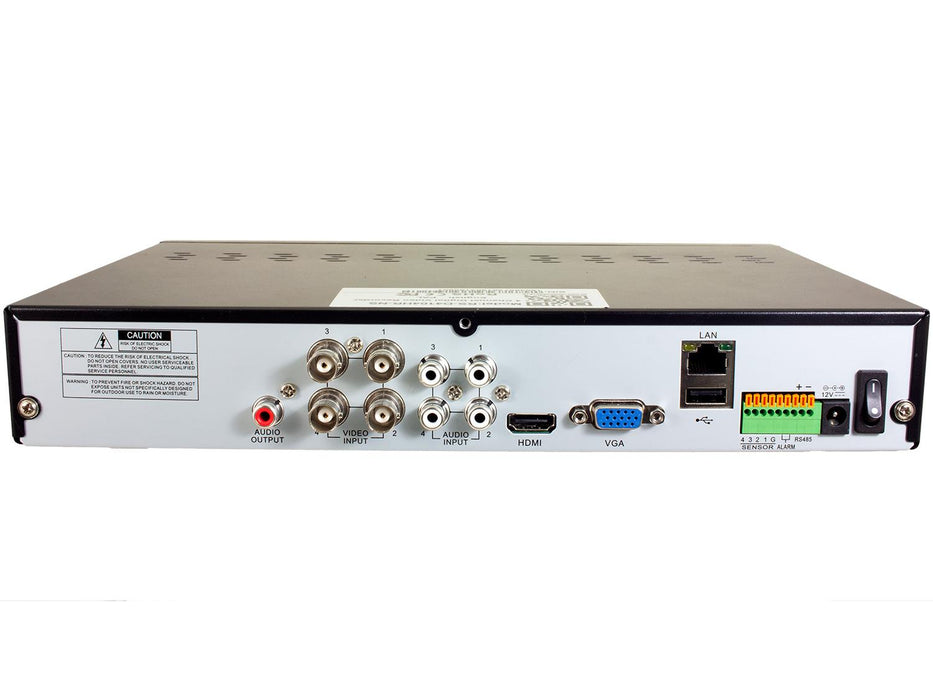

Analogue Video Input/Output: 4CH inputs/VGA and HDMI output
IP Video Input: 2ch (only IP up to 6ch)
Composite Video Input: up to 6ch (analogue video + IP video)
Audio input/output: 4CH inputs/1CH output (RCA)
Display
Resolution:
Analogue:
5MP-Lite: 20fps
4MP-Lite: 30 fps
3MP: 18fps
1080P/720P/960H: 30fps
IP:
5MP/4MP/3MP1080P/720P
Feature:
1/4/6/S.E.Q.
RECORDER
Recording
Encoding Resolution: Main stream: 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps; 8 MP@8 fps is only available for channel 1
Video Bit Rate: 32 Kbps to 6 Mbps
Dual Stream: Support
Stream Type: Video Video & Audio
Audio Compression: G.711u
Audio Bit Rate: 64 Kbps
Video And Audio
IP Video Input: 2-ch (up to 6-ch) IP enhanced mode on: 4-ch (up to 8-ch) each up to 4 Mbps
AHD Input: 5 MP 4 MP 1080p@25 fps 1080p@30 fps 720p@25 fps 720p@30 fps 4 MP 1080p@25 fps 1080p@30 fps 720p@25 fps 720p@30 fps
CVI Input: 4 MP 1080p@25 fps 1080p@30 fps 720p@25 fps 720p@30 fps
CVBS Input: PAL/NTSC
HDMI/VGA Output: VGA: 1-ch 1920 x 1080/60Hz 1280 x 1024/60Hz 1280 x 720/60Hz 1024 x 768/60Hz HDMI/VGA simultaneous output HDMI: 1-ch 2K (2560 x 1440)/60Hz 1920 x 1080/60Hz 1280 x 1024/60Hz 1280 x 720/60Hz 1024 x 768/60Hz HDMI/VGA simultaneous output
Audio Input: 1-ch RCA (2.0 Vp-p 1 Kohm)
Audio Output: 1-ch RCA (Linear 1 Kohm)
Two-Way Audio: 1-ch RCA (2.0 Vp-p 1 Kohm) (using the first audio input)
Synchronous Playback: 4-ch
TVI Input: 8MP 5MP 4MP 3MP 1080p@30 fps 1080p@25 fps 720p@60 fps 720p@50 fps 720p@30 fps 720p@25 fps; 8MP signal input is only available for channel 1
CVBS Output: 1-ch BNC (1.0 Vp-p 75 ohm)resolution: PAL: 704 x 576 NTSC: 704 x 480
Network
Remote Connections: 128
Network Interface: 1x RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
SATA: 1x SATA interface
Capacity: Up to 10 TB capacity
Alarm In/Out: 4/1
USB Interface: 1x USB 2.0; 1x USB 3.0
General
Power Supply: 12V DC
Working Temperature: -10 °C to +55 °C
Working Humidity: 10% to 90%
Weight (Without HDD): 1.16 kg
Consumption (Without HDD): 10 W
Dimensions (W x D x H): 315 x 242 x 45 mm
