8 Dome Camera Hikvision TVI 1080p HD CCTV System with 20m IR, PoC DVR
What are the Benefits of TVI HD?
- Uncompressed HD Video
- TVI is a revolutionary new recording format for CCTV, that allows virtually uncompressed recording at resolutions simply not possible with traditional analogue cameras. Just check the screenshots and video for comparison to 700TVL cameras!
- Plug and Play Setup
- Unlike IP systems that need to be configured on your network, TVI kits simply connect together using standard coax cables. This combines the quality of HD with the easy setup of analogue and allows you to use existing RG59 wiring if you are upgrading a system
- Easy RG59 upgrade
- Use the drop-down menu at the top of the page to select the type of cables you need or leave them out if you are upgrading a system that already has RG59 wiring
- No Playback Delay
- With IP cameras over a network, there is a slight delay in the video playback. TVI systems are wired directly to the recorder, meaning live playback is actually live!
- Power-over-Coax
- Cameras draw power directly from the recorder over the RG59 cables, preventing the need for an external power supply
Camera Features
- Full 1080p HD footage
- Captures recordings in full HD 1920x1080p resolution and at 25fps giving you clear, crisp footage full of vital, useable details
- 20 Metres Infra-red night vision
- Capture your subjects in even the darkest conditions with 20 Metres of night vision capability
- Dome style CCTV camera
- The more subtle shape of the dome type security cameras means they can be placed less conspicuously in a variety of security situations
- IP66 rated Weatherproof Cameras
- IP66 rated casing on cameras means they can be set up in a range of outdoor or exposed situations
- Low Light Recording
- Capable of recording in conditions as dark as 0.005 Lux without using night vision
Recorder Features
- Full HD 1080p playback and recording
- Capture extremely crisp images at 1920x1080p resolution at 25fps
- 8 Video Channels and 1 Audio Channel
- Giving you plenty of upgrade and expansion options for any home or medium-sized business set up
- Access your Recorder and footage on the go
- Check-in on your property at any time on the fly using a mobile device - Compatible with iOS, Windows and Android platforms
- Easy to use interface
- Advanced Hikvision features make it super easy to set up your system and find your footage to view it back later
- Customise your System
- Choose the right hard drive size and cable length for your system from the drop-down menus at the top of the page

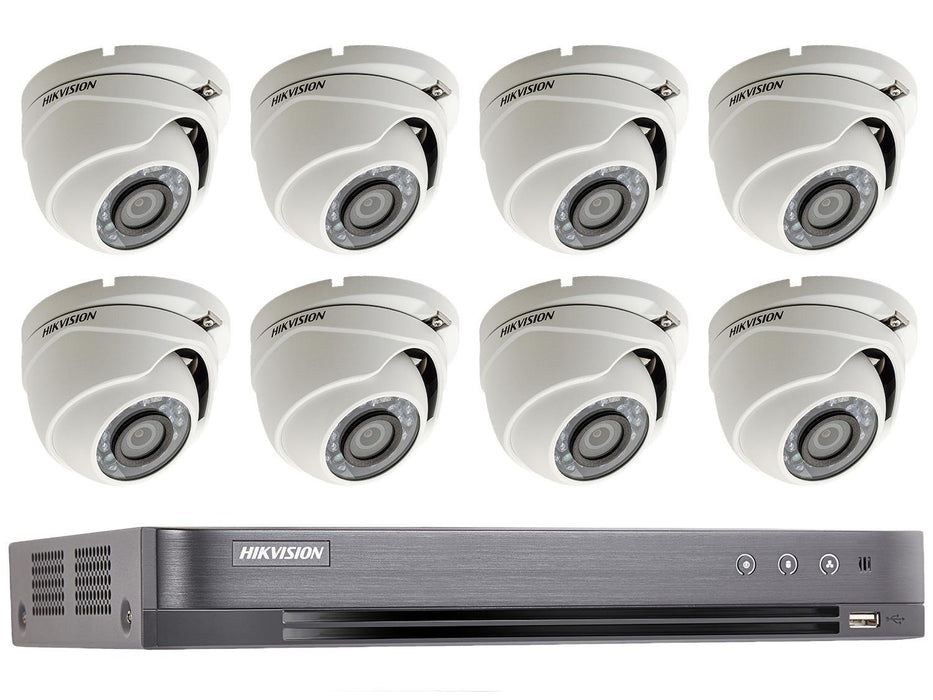

What's in the box?
- 8x Turbo HD TVI Outdoor Dome Camera
- 1x 8 Channel Turbo HD TVI DVR
- 1x Mains Power Supply for DVR
- 1x USB Mouse
- 1x Remote Control
- 1x Manual and Software CD
TVI technology allows the cameras to send uncompressed, 1920x1080p Full HD video down a standard RG59 coax cable. This lets the system record pin-sharp video, with enough detail to suit even the most demanding applications. Crucially, because the kit just uses standard RG59 cabling, if you have an existing CCTV system that uses this, then you can upgrade without even having to run new wires! The system uses Power-over-Coax (PoC), letting the cameras draw power from the record over the RG59 cable, and removing the need for additional power supplies.
You can use the drop-down menu at the top of the page to select the length of cables that you require for your installation. Already have cables? Simple! Just leave the menu blank and you can buy just the cameras and recorder
The included cameras are perfect for retail or office security, as they are each housed inside a compact and discreet dome. Powerful LEDs provide up to 20m of night vision illumination, and the domes are all IP66 rated. This means you can install them in exposed outdoor locations without having to worry about the weather. Their size also makes them perfect for interior security, such as being mounted on a suspended ceiling or viewing a doorway.
The Hikvision recorder is the "brains" of the system, providing in-depth control over a wide range of recording modes, including motion detection and scheduling. An HDMI output allows you to easily connect it to most HD TVs or monitors, and there is also a network connection. Plugging this into your router allows you to watch recorded or live footage from your cameras securely over the internet using a PC or mobile.
Cameras
Image Sensor: 2 MP CMOS Image Sensor
Signal System: PAL / NTSC
Effective Pixels: 1920 x 1080
Min. Illumination: 0.005 Lux @(F1.2AGC ON) 0 Lux with IR
Shutter Time: 1/25(1/30)s to 1/50000s
Lens: 2.8mm
Angle of View: 82.6°(2.8mm)
Lens Mount: M12
Angle Adjustment: Pan: 0-360° Tilt: 0-90° Rotation: 0-360°
Day & Night: ICR
Synchronization: Internal synchronization
Video Frame Rate: 1080p@25fps / 1080p@30fps
HD Video Output: 1 Analog HD output
Scene: Indoor Outdoor Indoor1 LOW-LIGHT
Camera ID: On/off (15 characters position programmable)
AGC: Support
D/N Mode: Color / BW / EXT
White Balance: ATW AWC-SET Indoor Outdoor Manual
Privacy Mask: On/Off maximum 4 zones
Motion Detection: On/Off maximum 4 zones
BLC: Support
Working Temperature: -40°C - 60°C (-22°F - 140°F)
Humidity: 90% or less (non-condensing)
Power Supply: 12V DC
Power Consumption: Max. 3.6W
Weather Proof Ratings: IP66
IR Range: Up to 20m
Communication: Up the coax (need UTC controller)
Protocol: Pelco-C (Coaxitron)
Dimensions: 89.6 x 59.1mm
Weight: 400g
DVR
Video compression: H.264
Analog and HD-TVI video input: 8-ch
BNC interface: (1.0Vp-p 75ohm)
Supported camera types: 720p @ 25fps 720p @ 30fps 720p @ 50fps 720p @ 60fps 1080p@ 15fps CVBS
IP video input: 2-ch up to 1080p resolution
Audio compression: G.711u G.726 G.711a G.722
Audio input: 1-ch RCA (2.0 Vp-p 1Kohm)
Two-way audio in: 1-ch RCA (2.0 Vp-p 1Kohm using the 1st channel of audio input)
HDMI / VGA output: 1920x1080 / 60 Hz 1280x1024 / 60 Hz 1280x720 / 60Hz 1024x768 / 60 Hz
Encoding resolution - Main stream: 1080p / 720p / VGA / WD1 / 4CIF / CIF
Encoding resolution - Sub-stream: WD1 (non-real-time) / 4CIF (non-real-time) / CIF / QCIF / QVGA
Frame rate - Main stream: 1/16 fps ~ Real time frame rate
Frame rate - Sub-stream: 1/16 fps ~ Real time frame rate
Video bitrate: 32 Kbps - 10 Mbps
Audio output: 1-ch RCA (Linear 1Kohm)
Audio bitrate: 64 Kbps
Dual-stream: Support
Stream type: Video Video & Audio
Synchronous playback: 8-ch
Playback resolution: 1080p / 720p / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Remote connections: 128
Network protocols: TCP/IP PPPoE DHCP EZVIZ Cloud P2P DNS DDNS NTP SADP SMTP SNMP NFS iSCSI UPnP HTTPS
SATA: 2 SATA interface
Capacity: Up to 6TB capacity for each disc
Network interface: 1; 10M / 100M / 1000M self-adaptive Ethernet interface
Serial interface: 1; standard RS-485 serial interface half-duplex
Alarm in/out: 8/4
USB port: 2x USB 2.0
Power supply: 12V DC
Consumption (without hard disks): 30W
Working temperature: -10°C - 55°C
Working humidity: 10% - 90%
Chassis: 380mm 1U chassis
Dimensions: 380mm x 290mm x 48mm
Weight (without hard disks): 2kg
