8 Camera Hikvision TVI 1080p HD CCTV System with 40m IR and PoC DVR
What are the Benefits of TVI HD?
- Uncompressed 1080p Video
- TVI is a revolutionary new recording format for CCTV, that allows virtually uncompressed recording at resolutions simply not possible with traditional analogue cameras
- Plug and Play Setup
- Unlike IP systems that need to be configured on your network, TVI kits simply connect together using standard coax cables. This combines the quality of HD with the easy setup of analogue and allows you to use existing RG59 wiring if you are upgrading a system
- Easy RG59 upgrade
- Use the drop-down menu at the top of the page to select the type of cables you need or leave them out if you are upgrading a system that already has RG59 wiring
- No Playback Delay
- With IP cameras over a network, there is a slight delay in the video playback. TVI systems are wired directly to the recorder, meaning live playback is actually live
- Power-over-Coax
- Cameras draw power directly from the recorder over the RG59 cables, preventing the need for an external power supply
Camera Features
- 1080p Full HD Video
- Cameras record in 1920x1080p, capturing massive amounts of detail
- 40 Metres Night Vision
- Illuminator allows the camera to record subjects up to 40m away, even in total darkness
- EXIR LEDs
- Hikvision's proprietary infra-red technology gives an even illumination across the frame, without the dark corners that LED rings to give
- In-depth Image Controls
- The DVR's menus provide lots of options for fine-tuning features such as dynamic range and contrast
- IP66 Rated Housing
- Heavy duty casing is completely weather-proof, allowing outdoor installation
- Low Light Recording
- Capable of recording in conditions as dark as 0.005 Lux without using night vision
Recorder Features
- 1080p recording and playback
- DVR lets you record and view Full HD video across all channels
- 8 Video Channels
- Independently set recording times and triggers for each camera in the system
- Audio Channel
- Allows you to add a microphone to your system
- Advanced Recording Options
- Includes in-depth motion detection with zone and privacy masking, as well as full scheduling options
- Remote Access
- Connect to your router and configure to allow remote viewing of live and recorded footage, as well as adjusting settings, from anywhere using a PC
- Mobile Access
- As well as using a PC, the recorder can be set to view live footage from anywhere in the world over a mobile device running iOS, Android or Windows Phone
- Customise your System
- Choose the right hard drive size and cable length for your system from the drop-down menus at the top of the page
What's in the box?
- 1x 8 Channel Turbo HD TVI DVR
- 1x Mains Power Supply for DVR
- 1x USB Mouse
- 1x Remote Control
- 1x Manual and Software CD
- 8x Turbo HD TVI Bullet Cameras
TVI cameras use the latest encoding technology to send high-resolution video footage down a standard RG59 coax cable- the same type found in most traditional professional CCTV systems. This allows the system to record incredible levels of detail, essential if you need to capture evidence of licence plates or faces. As the system uses RG59 cables with standard BNC connectors, you might even be able to use your current cables if you have an existing system. The system uses Power-over-Coax (PoC), letting the cameras draw power from the record over the RG59 cable, and removing the need for additional power supplies.
Using the drop-down menu at the top of the page you can select the correct length of cable for your installation. If you already have cables installed then just leave this blank, and you can order the cameras and recorder by themselves.
As is to be expected of such a system, the included cameras are some of the most versatile and heavy-duty in our range. They are housed in IP66 rated casings, making them completely weatherproof, and boast a huge 40m night vision range. They are also fitted with varifocal lenses, allowing you to manually adjust them from a wide view to a closer focus, meaning you can fine-tune your system's coverage.
Cameras
Image Sensor: 1/3 Progressive Scan CMOS
Signal System: PAL / NTSC
Effective Pixels: 1920 x 1080
Min. Illumination: 0.005 Lux @ (F1.2 AGC ON) 0 Lux with IR
Shutter speed: 1/25(1/30)s to 1/50000s
Lens: 3.6mm
Angle of view: 103.5°
Lens Mount: M12
Day & Night: IRC
Wide dynamic range: 120 dB
Synchronization: Internal synchronization
Video Frame Rate: 1080p @ 25fps / 1080p @ 30fps
HD Video Output: 1 Analogue HD output
AGC: Support
D/N Mode: Color / BW
White Balance: ATW Manual
Privacy Mask: On/Off maximum 4 zones
Motion Detection: On/Off maximum 4 zones
BLC: WDR BLC HLC Off
Anti-flicker: On/off
Function: Brightness Sharpness Mirror IR
Working Temperature: -40°C - 60°C
Humidity: Humidity 90% or less (non-condensing)
Power Supply: 12V DC
Power Consumption: Max. 3.6W
Weather Proof Ratings: IP66
IR Range: Up to 40m
Communication: Up the coax (need UTC controller)
Protocol: Pelco-C (Coaxitron)
Dimensions: 86.7 x 81.6 x 226mm
Weight: 680g

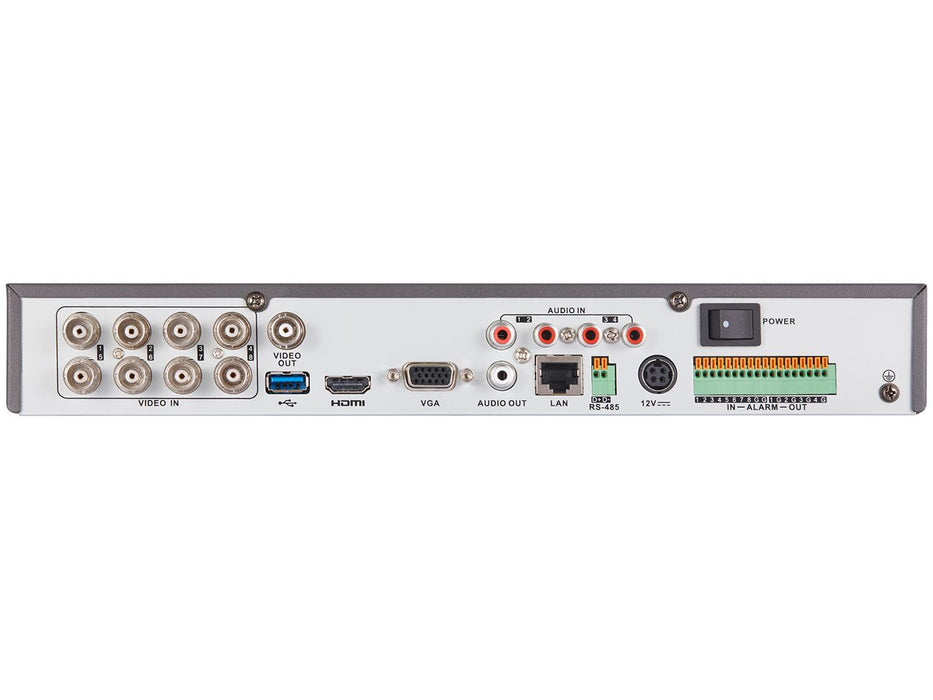

DVR
Video compression: H.264
Analog and HD-TVI video input: 8-ch
BNC interface: (1.0Vp-p 75ohm)
Supported camera types: 720p @ 25fps 720p @ 30fps 720p @ 50fps 720p @ 60fps 1080p@ 15fps CVBS
IP video input: 2-ch up to 1080p resolution
Audio compression: G.711u G.726 G.711a G.722
Audio input: 1-ch RCA (2.0 Vp-p 1Kohm)
Two-way audio in: 1-ch RCA (2.0 Vp-p 1Kohm using the 1st channel of audio input)
HDMI / VGA output: 1920x1080 / 60 Hz, 1280x1024 / 60 Hz, 1280x720 / 60 Hz, 1024x768 / 60 Hz
Encoding resolution - Main stream: 1080p / 720p / VGA / WD1 / 4CIF / CIF
Encoding resolution - Sub-stream: WD1 (non-real-time) / 4CIF (non-real-time) / CIF / QCIF / QVGA
Frame rate - Main stream: 1/16 fps ~ Real time frame rate
Frame rate - Sub-stream: 1/16 fps ~ Real time frame rate
Video bitrate: 32 Kbps - 10 Mbps
Audio output: 1-ch RCA (Linear 1Kohm)
Audio bitrate: 64 Kbps
Dual-stream: Support
Stream type: Video Video & Audio
Synchronous playback: 8-ch
Playback resolution: 1080p / 720p / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Remote connections: 128
Network protocols: TCP/IP PPPoE DHCP EZVIZ Cloud P2P DNS DDNS NTP SADP SMTP SNMP NFS iSCSI UPnP HTTPS
SATA: 2 SATA interface
Capacity: Up to 6TB capacity for each disk
Network interface: 1; 10M / 100M / 1000M self-adaptive Ethernet interface
Serial interface: 1; standard RS-485 serial interface half-duplex
Alarm in/out: 8/4
USB port: 2 x USB2.0
Power supply: 12V DC
Consumption (without hard disks): 30W
Working temperature: -10°C - 55°C
Working humidity: 10% - 90%
Chassis: 380mm 1U chassis
Dimensions: 380mm x 290mm x 48mm
Weight (without hard disks): 2kg
