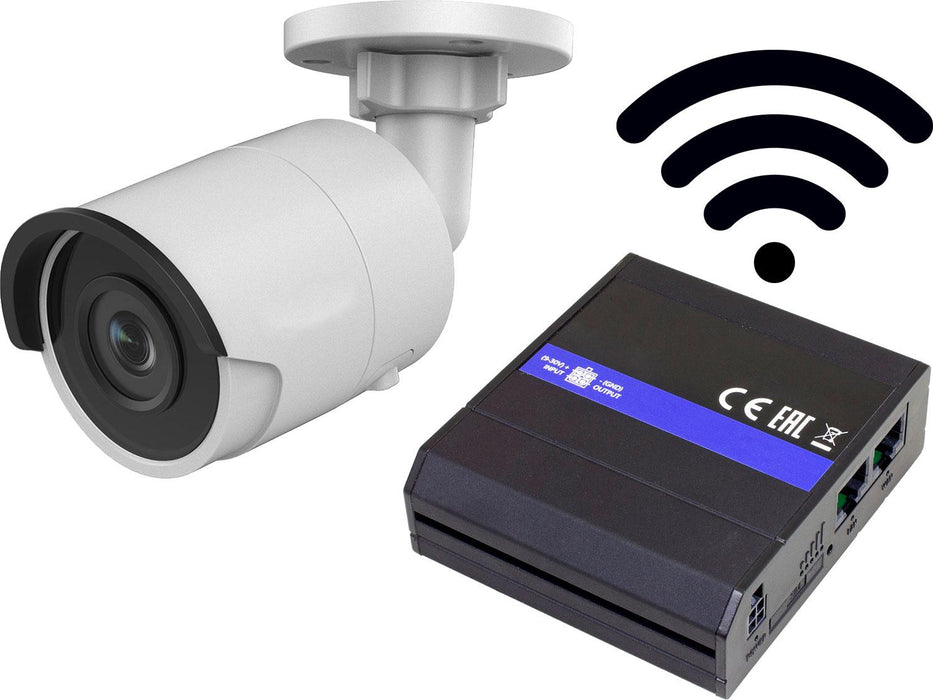

4G LTE Wireless Farm Camera Kit with IP Camera
- High-Resolution 4G Farming Camera Kit
- Our farming camera kits have been used in the industry for years. This is the first system that we have bundled 4G mobile data router!
- Compact 4G Router
- Slow broadband connection? Using this router allows you to connect the camera to the internet via the airwaves. This will need configuring with our remote setup service included for free in this package.
- 4-Megapixel Video
- Captures footage at 2688x1520 resolution, recording over twice the subject detail of 1080p HD. Ideal for getting a clear view of your animals and spotting any changes in their behaviour or expressions
- 40m Night Vision
- Infrared LEDs allow the camera to keep recording even in complete darkness, with enough range for large unlit barns or yards
- Low Lux Sensor
- Advanced imaging chip can record pictures in conditions as dark as 0.003 Lux before having to switch to night vision, helping you record in colour for more hours of the day. Low-light images have less noise and require less bandwidth with 3D noise reduction
- Remote Access
- Connect the camera to your router to view live or recorded footage from anywhere using a PC or mobile device. This will need configuring with our remote setup service included for free in this package.
- Smart Analytics
- Advanced processing allows use of automation features including facial detection, line crossing and intrusion detection, helping you skim through footage faster, get alerted in case animals try to escape, protect your property against intruders and other kinds of trouble. These can be set with trigger alerts, using the free app, or with an NVR
- Wide Angle Lens
- Fitted with a 2.8mm lens, providing a 103-degree field of view in front of the camera
- H.265+ Compression
- Uses advanced data compression technology to record highly detailed video files without eating up all of your memory, letting you record for longer
- MicroSD Card Slot
- Record and store footage without needing an external video recorder. Works with cards up to 256GB (card not included)
Please note that a separate 4G data contract for a minimum of 24 months is required.
What's in the box?
- 1x 4MP Bullet CCTV Camera
- 1x 4G Router
- 1x 10m Ethernet Network Cable
- 1x Mains UK Power Supply
- 1x 10 Metre DC Power Extension Cable
- FREE 1 Year Premium Support
We have been supplying farmers and breeders with bespoke CCTV solutions for over 12 years. Our kits help take the stress out of calving, lambing and foaling by allowing you to keep a close eye on all of your animals from one place, without having to constantly trudge out to barns and sheds. We often receive feedback that rural broadband connections are too slow to cope with video streaming so we've put this bundle together to solve this problem! Instead of a broadband connection, the camera connects to a 4G mobile data router so that you can watch remotely on your smartphone, tablet or computer.
Whether your barn is well-lit or not at all, you're sure to get clear footage day and night. In addition to its huge recording resolution, this compact bullet camera features night vision to allow 24/7 monitoring. What's more, with low light sensor and advanced imaging chip, you'll get full-colour recordings for more hours of the day, as this round-the-clock camera can fight darkness too as low as 0.003 Lux before having to switch to night vision.
Built safely into a sturdy IP66-rated weatherproof housing, you can install it indoors or outdoors without worry. The camera also features a built-in MicroSD card slot, allowing you to record footage without an external device, or simply have it as a backup solution.
Keeping watch from the comfort of your sofa instead of having to put the wellies back on whenever you need to check on the wee critters? No problem; the camera can be accessed remotely. Simply connect the camera to your network via a router or switch. Then, using easy remote access software, you can view live or recorded footage remotely via a PC or mobile device. If this sounds complicated then don't worry: we have bundled in our remote setup service for free to get the 4G router and remote access working for you!
This nifty camera also boasts Smart Analytics trigger alerts, which can be configured with the PC app, letting you automate your security system with incredible flexibility. Smart what, now? Smart Analytics! They include facial detection, line crossing and intrusion detection, helping you protect your property against intruders and other kinds of trouble. Say, you want to scan through hours of footage to check who walked on your property. You can simply instruct the app to skip straight to all the moments that the camera captured faces, which will save you a lot of time.
The line crossing and intrusion detection options are not just great for keeping out trespassers, but also for whenever one of your animals might decide to escape and dart off on an adventure!
For sure security of your property and proper protection of your animals with great ease and convenience, this is your go-to kit!
Please note that a separate 4G data contract for a minimum of 24 months is required.
Camera Specs
Image Sensor: 1/2.7" Progressive Scan CMOS
Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON)
Shutter Speed: 1/3 s to 1/100,000 s
Day & Night: ICR Cut
Slow Shutter: Yes
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Wide Dynamic Range: 120 dB
Lens
Lens Type: 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°
Aperture: F1.4
Lens Mount: M12
Aperture Type: Fixed
Illuminator
IR Range: Up to 40 m
Wavelength: 850 nm
Smart Supplement Light: Yes
Supplement Light: IR
Video
Max. Resolution: 2592 × 1944
Video Compression: H.265/H.264
Video Bit Rate: 32 Kbps to 8 Mbps
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): Yes
Region of Interest (ROI): 1 fixed regions for each stream
Audio
Environment Noise Filtering: Yes
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate: 64Kbps (G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
Network
Simultaneous Live View: Up to 6 channels
API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth Streaming :Yes
User/Host: Up to 32 users. 3 user levels: administrator, operator and user
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
Network Storage: microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Software: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Day/Night Switch: Day, Night, Auto, Schedule
Image Enhancement: BLC, HLC, 3D DNR
Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface
Audio: 1 built-in microphone
On-board Storage: Built-in micro SD slot, up to 256 GB
Hardware Reset: Yes
Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
Intelligent (Traditional Algorithm)
Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
Intelligent (Deep Learning Algorithm)
Face Capture: Yes
Premier Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection
General
Storage Temperature: -30 °C to 60 °C
Storage Humidity: 95% or less (non-condensing)
Operating Temperature: -30 °C to 60 °C
Operating Humidity: 95% or less (non-condensing)
Power Supply: 12V DC ± 25%, reverse polarity protection; PoE: 802.3af, class 3
Power Consumption: 12V DC, 0.5 A, max. 6.0 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, max. 7.0 W
Power Interface: Ø 5.5 mm coaxial power plug
Material: ADC12
Camera Dimensions: Ø 70×161.7 mm
Package Dimension: 216×121×118 mm
Camera Weight: 480 g
With Package Weight: 696 g
Certification: EMC, FCC, CE-EMC, RCM, KC
Safety: UL, CB, CE-LVD, BIS, LOA, CE-RoHS, WEEE, Reach
Protection: IP66
4G Router Specs
Mobile
Mobile module: 4G (LTE): Cat 4 up to 150 Mbps, 3G: Up to 42 Mbps, 2G: Up to 236.8 kbps
Status: Signal strength (RSSI) SINR RSRP RSRQ EC/IO RSCP Bytes sent/received
Bridge: Direct connection (bridge) between mobile ISP and device on LAN
SMS: SMS status SMS configuration send/read SMS via HTTP POST/GET EMAIL to SMS SMS to EMAIL SMS to HTTP SMS to SMS scheduled SMS SMS autoreply SMPP
Black/White list (optional): Operator black/white list
Multiple PDN (optional): Possibility to use different PDNs for multiple network access and services
Band management: Band lock Used band status display
Wireless
Wireless mode: IEEE 802.11b/g/n Access Point (AP) Station (STA)
WiFi: WPA2-Enterprise (with external/internal Radius server) WPA2-PSK WPA-PSK WEP MAC Filter
WiFi Security: WPA2-Enterprise - PEAP TLS TTLS AES-CCMP TKIP Auto Cipher modes Client separation
SSID: SSID stealth mode and access control based on MAC address
WiFi Users: Up to 50 simultaneous connections
Hotspot: Captive portal (Hotspot) internal/external Radius server built-in customizable landing page
Ethernet
WAN: 1 x WAN port (can be configured to LAN) 10/100 Mbps comply IEEE 802.3 IEEE 802.3u standards supports auto MDI/MDIX
LAN: 1 x LAN port 10/100 Mbps comply IEEE 802.3 IEEE 802.3u standards supports auto MDI/MDIX
Network
Routing: Static routing Dynamic routing (Optional - BGP OSPF v2 RIP v1/v2)
Network Protocols: TCP UDP IPv4 IPv6 ICMP NTP DNS HTTP HTTPS FTP SMTP SSL v3 TLS ARP VRRP PPP PPPoE UPnP SSH DHCP Telnet SMNP MQTT Wake On Lan (WOL)
VoIP Passthrough Support: H.323 and SIP-alg protocol NAT helpers allowing proper routing of VoIP packets
Connection Monitoring: Ping Reboot Periodic Reboot LCP and ICMP for link inspection
Firewall: Port forward traffic rules custom rules
DHCP: Static and dynamic IP allocation DHCP Relayd
QoS: Traffic priority queuing by source/destination service protocol or port traffic priority queuing by source/destination service protocol or port WMM 802.11e
DDNS: Supported >25 service providers others can be configured manually
Network Backup: VRRP Mobile Wired and WiFi WAN options each of which can be used as backup using automatic Failover
Load Balancing: Balance your internet traffic over multiple WAN connections
NetSnapper (optional): Mobile connection management data compression VPN client (not available in standard FW)
SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in standard FW)
Security
Authentication: Pre-shared key digital certificates X.509 certificates
Firewall: Pre-configured firewall rules can be enabled via web-ui unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack Prevention: DDOS prevention (SYN flood protection SSH attack prevention HTTP/HTTPS attack prevention) port scan prevention ( SYN-FIN SYN-RST X-mas NULL flags FIN scan attacks)
WiFi Security: WPA2-Enterprise – PEAP EAP-TLS TLS TTLS. AES-CCMP TKIP Auto Cipher modes Client separation
VLAN: Tag based VLAN separation
Mobile Quota Control: Set up custom data limits for the SIM card
WEB Filter: Blacklist for blocking out unwanted websites whitelist for specifying allowed sites only
Access Control: Flexible access control of TCP UDP ICMP packets MAC address filter
VPN
OpenVPN: Multiple clients and server can be running simultaneously 12 encryption methods
OpenVPN Encryption: DES-CBC RC2-CBC DES-EDE-CBC DES-EDE3-CBC DESX-CBC BF-CBC RC2-40-CBC CAST5-CBC RC2-64-CBC AES-128-CBC AES-192-CBC AES-256-CBC
IPsec: IKEv1 IKEv2 supports up to 4 x VPN IPsec tunnels (instances) with 5 encryption methods (DES 3DES AES128 AES192 AES256)
GRE: GRE tunnel
PPTP L2TP: Client/Server services can run simultaneously
Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
SSTP: SSTP client instance support
Monitoring & Management
WEB UI: HTTP/HTTPS status configuration FW update CLI troubleshoot event log system log kernel log
FOTA: Firmware update from sever automatic notification
SSH: SSH (v1 v2)
SMS: SMS status SMS configuration send/read SMS via HTTP POST/GET
TR-069 (optional): OpenACS EasyCwmp ACSLite tGem LibreACS GenieACS FreeACS LibCWMP Friendly tech AVsystems
MQTT: MQTT Broker MQTT publisher
SNMP: SNMP (v1 v2 v3) SNMP trap
JSON-RPC: Management API over HTTP/HTTPS
MODBUS: MODBUS TCP status/control
RMS: Teltonika Remote Management System (RMS)
System Characteristics
CPU: Atheros Hornet MIPS 24Kc 400 MHz
RAM: 64 MB DDR2
FLASH: memory 16 MB SPI Flash
Firmware/Configuration
WEB UI: Update FW from file check FW on server configuration profiles configuration backup restore point
FOTA: Update FW/configuration from server
RMS: Update FW/configuration for multiple devices
Keep Settings: Update FW without losing current configuration
Firmware Customisation
Operating System: RutOS (OpenWrt based Linux OS)
Supported Languages: Busybox shell Lua C C++
Development Tools: GPL package with built environment provided
Input/Output
Input: 1 x Digital Input
Output: 1 x Digital Output
Events: SMS EMAIL RMS
Power
Connector: 4 pin industrial DC power socket
Input Voltage Range: 9 – 30 VDC (4 pin industrial socket) reverse polarity protection surge protection >33 VDC 10us max
PoE (passive): Passive PoE over spare pairs (available from HW revision 0007 and batch number 0010). Possibility to power up through LAN port not compatible with IEEE802.3af and 802.3at
Power Consumption: < 5 W
Physical Interfaces (Ports LEDs Antennas Buttons SIM)
Ethernet: 2 x RJ45 ports 10/100 Mbps
Status LEDs: 3 x connection type status LEDs 5 x connection strength LEDs 2 x LAN status LEDs 1x Power LED
SIM: 1 x SIM slot (Mini-SIM – 2FF) 1.8 V/3 V external SIM holder
Power: 4 pin DC connector with 1 x Digital input and 1 x Digital output
Antennas: 2 x SMA for LTE 1 x RP-SMA for WiFi antenna connectors
Reset: Reset/restore to default button
Physical Specification
Casing Material: Aluminum housing plastic panels
Dimensions: 83 mm x 74 mm x 25 mm (H x W x D)
Weight: 125 g
Mounting Options: Bottom and sideways DIN rail mounting slots
Operating Environment
Operating Temperature: -40 °C to 75 °C
Operating Humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30
MTBF: 310000 h
Regulatory & Type Approvals
Regulatory: CE/RED FCC IC/ISED EAC RCM PTCRB RoHS WEEE WiFi Alliance
Operator: Verizon AT&T
Vehicle: ECE R10 (E-mark) (planned)
EMI Immunity
Standards: Draft EN 301 489-1 V2.2.0 Draft EN 301 489-17 V3.2.0 Draft EN 301 489-52 V1.1.0
FCC 47 CFR Part 15B (2017) ANSI C63.4 (2014)
ESD: EN61000-4-2:2009
RS: EN 61000-4-3:2006 + A1:2008 + A2:2010
EFT: EN 61000-4-4:2012
Surge protection: EN 61000-4-5:2006
CS: EN 61000-4-6:2009
DIP: EN 61000-4-11:2004
RF
Standards: EN 300 328 V2.1.1 EN 301 511 V12.5.1 EN 301 908-1 V11.1.1 EN 301 908-2 V11.1.1 EN 301 908-13 V11.1.1
FCC 47 CFR Part 15C (2017) FCC 47 CFR Part 2 (2017) FCC 47 CFR Part 22H (2017) FCC 47 CFR Part 24E (2017) FCC 47 CFR Part 27C (2017)
RSS-Gen Issue 4 (2014) RSS-247 Issue 2 (2017) RSS-132 Issue 3 (2013) RSS-133 Issue 6 (2013) RSS-139 Issue 3 RSS-130 Issue 1
AS/CA S042.1:2018 AS/ACIF S042.3:2005 AS/CA S042.4:2018 AS/NZS 4268:2017
Safety
Standards: IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013
AS/NZS 60950.1:2015
EN 50665:2017 EN 62311:2008
FCC 47 CFR Part 1 1.1310
RSS-102 Issue 5 (2015)
