2TB Toshiba Surveillance Grade HDD Hard Drive
This 2TB hard drive is perfect for use in our CCTV DVRs and NVRs. The surveillance grade drive is designed for constant use, essential when recording CCTV footage.
What's in the box?

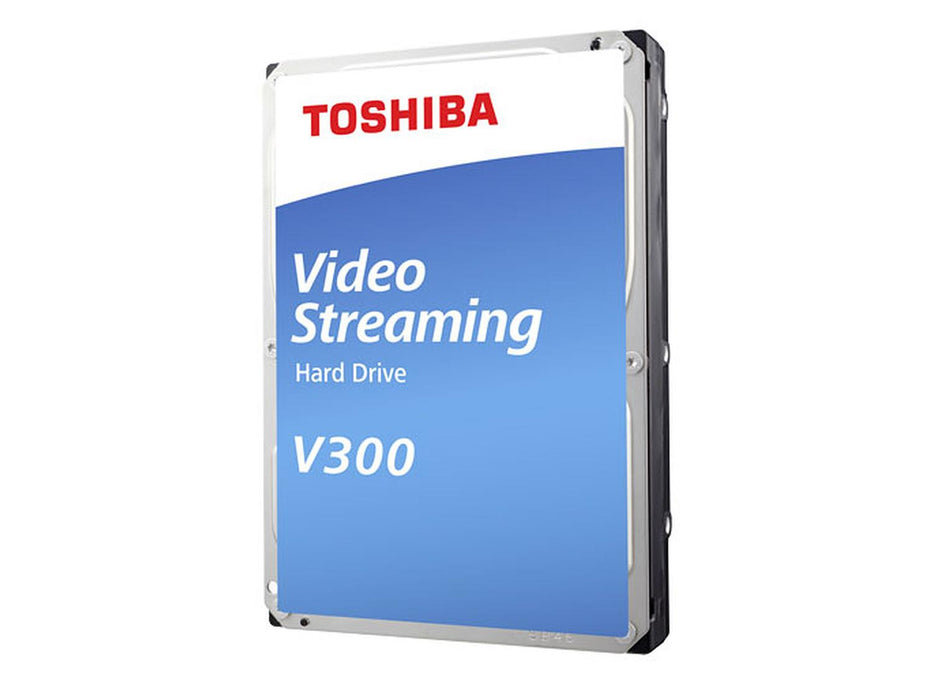

- 1x 3.5-inch internal HDD - V300 Video Streaming Hard Drive
Basic Specifications
Form factor: 3.5-inch
Interface: 6.0 Gbit/s
Number of cameras supported: up to 8
Drive bays supported: 4
Advanced Format (AF): Yes
RoHS compatible: Yes
Halogen Free: Yes
Shock Sensor: Yes
Performance
Rotational speed: 5940 rpm (3 TB) 5700 rpm (500 GB - 2 TB)
Buffer size: 64 MB
Native Command Queuing (NCQ): supported
Reliability
Workloads: 72 TB/year
Unrecoverable error rate: 1 per 10E14 bits read
24/7 operation: Yes
Load/Unload Cycle: 300.000
Power Management
Supply voltage: 5V DC ±5%; 12V DC ±10%
Consumption (operating): 5.40 W typ. (3 TB) 4.70 W typ. (2 TB) 5.70 W typ. (500 GB 1 TB)
Consumption - Active Idle: 4.20 W typ. (3 TB) 3.30 W typ. (2 TB) 3.00 W typ. (500 GB 1 TB)
Environmental
Operating temperature: 0.67 G (5 to 500 Hz)
Temperature (operating / non-operating): 0 - 65° C / -40 - 70° C
Vibration (operating): 0.67 G (5 to 500 Hz)
Vibration (non-operating): 1.04 G (2 to 200Hz)
Shock (operating): 70 G / 2 ms duration
Shock (non-operating): 300 G / 2 ms half sine
Acoustics (idle mode): 24 dB typ. (3 TB) 22 dB typ. (2 TB) 19 dB typ. (500 GB - 1 TB)
Physical
Dimensions: 147 (L) x 101.85 (W) x 26.1 (H) mm
Weight: (approx.) 680 g max. (2 TB 3 TB) 450 g max. (500 GB 1 TB)
